Sampling Raster Data with XArray#

Introduction#

Many scientific and environmental datasets come as gridded rasters. If you want to know the value of a variable at a single or multiple locations, you can use sampling techniques to extract the values. XArray has powerful indexing methods that allow us to extract values at multiple coordinates easily.

Overview of the Task#

In this tutorial, we will take a raster file of temperature anomalies and a CSV file with locations of all urban areas in the US. We will use Pandas and Xarray to find the temperature anomaly in all the urban areas and find the top 10 areas experiencing the highest anomaly. We will also use GeoPandas to save the results as a vector layer.

Input Layers:

t.anom.202207.tif: Raster grid of temprature anomaly for the month of July 2022 in the US.
2021_Gaz_ua_national.zip: A CSV file with point locations representing urban areas in the US.

Output Layers:

tanomaly.gpkg : A GeoPackage containing a vector layer of point locations with anomaly values sampled from the raster.

Data Credit:

US July 2021 Temperature Anomaly. NOAA Climate Prediction Center. Retrieved 2022-09
US Gazetteer files: 2021 United States Census Bureau. Retrieved 2022-09.

Setup and Data Download#

The following blocks of code will install the required packages and download the datasets to your Colab environment.

%%capture
if 'google.colab' in str(get_ipython()):
    !pip install rioxarray

import os
import pandas as pd
import geopandas as gpd
import rioxarray as rxr
import matplotlib.pyplot as plt

data_folder = 'data'
output_folder = 'output'

if not os.path.exists(data_folder):
    os.mkdir(data_folder)
if not os.path.exists(output_folder):
    os.mkdir(output_folder)

def download(url):
    filename = os.path.join(data_folder, os.path.basename(url))
    if not os.path.exists(filename):
        from urllib.request import urlretrieve
        local, _ = urlretrieve(url, filename)
        print('Downloaded ' + local)

raster_file = 't.anom.202207.tif'
csv_file = '2021_Gaz_ua_national.zip'

files = [
    'https://ftp.cpc.ncep.noaa.gov/GIS/USDM_Products/temp/anom/monthly/' + raster_file,
    'https://www2.census.gov/geo/docs/maps-data/data/gazetteer/2021_Gazetteer/' + csv_file,
]

for file in files:
  download(file)

Downloaded data/t.anom.202207.tif
Downloaded data/2021_Gaz_ua_national.zip

Data Pre-Processing#

First we read the raster file using rioxarray

Let’s Look at some pixel values.

raster.values

array([[[-9.99e+08, -9.99e+08, -9.99e+08, ..., -9.99e+08, -9.99e+08,
         -9.99e+08],
        [-9.99e+08, -9.99e+08, -9.99e+08, ..., -9.99e+08, -9.99e+08,
         -9.99e+08],
        [-9.99e+08, -9.99e+08, -9.99e+08, ..., -9.99e+08, -9.99e+08,
         -9.99e+08],
        ...,
        [-9.99e+08, -9.99e+08, -9.99e+08, ..., -9.99e+08, -9.99e+08,
         -9.99e+08],
        [-9.99e+08, -9.99e+08, -9.99e+08, ..., -9.99e+08, -9.99e+08,
         -9.99e+08],
        [-9.99e+08, -9.99e+08, -9.99e+08, ..., -9.99e+08, -9.99e+08,
         -9.99e+08]]], dtype=float32)

You will notice that the raster has many pixels with value -9.99e+08. These are NoData values but they are not encoded as such. We will mask these values to get only the valid pixels which will set them to nan values.

The raster has only 1 band containing temperature anomaly values, so we select it.

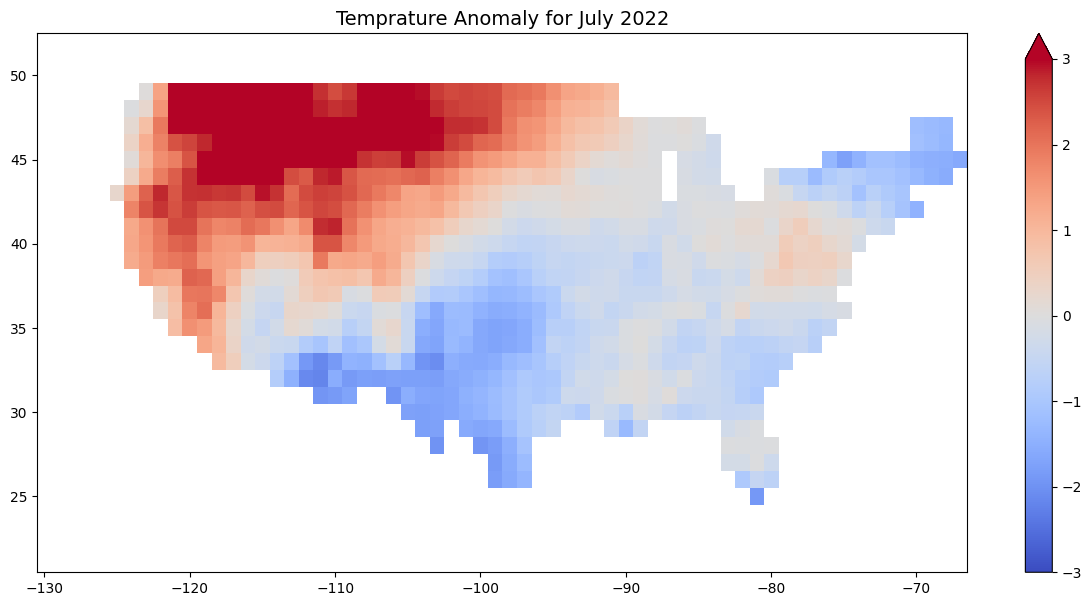

Let’s plot the data. It shows high temperature anomaly in the north-west US due to a record-breaking heatwave.

fig, ax = plt.subplots(1, 1)
fig.set_size_inches(15, 7)

tanomaly.plot.imshow(ax=ax,
    vmin=-3, vmax=3, add_labels=False, cmap='coolwarm')

ax.set_title('Temprature Anomaly for July 2022', fontsize = 14)

plt.show()

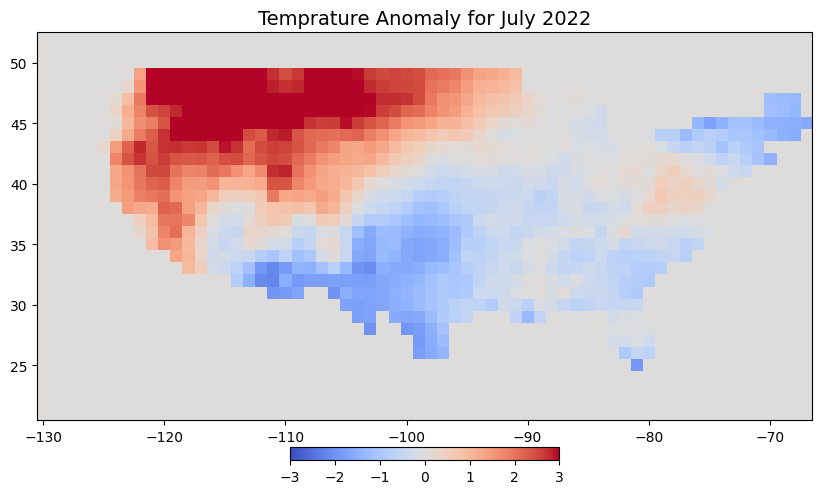

../_images/313d7efd7a7dc8b6d98d009fc8514cabb4a76b01065f38c51984ae3f3f1ead3c.png

Next, we read the Zipped CSV file containing the urban areas. This is a plain-text file with tab separated values. The column names also contain trailing whitespaces, so we remove them as well.

csv_filepath = os.path.join(data_folder, csv_file)
df  = pd.read_csv(csv_filepath, delimiter = '\t', compression='zip')
df.columns = df.columns.str.replace(' ', '')
df

	GEOID	NAME	UATYPE	ALAND	AWATER	ALAND_SQMI	AWATER_SQMI	INTPTLAT	INTPTLONG
0	37	Abbeville, LA Urban Cluster	C	29189598	298416	11.270	0.115	29.967156	-92.095966
1	64	Abbeville, SC Urban Cluster	C	11271136	19786	4.352	0.008	34.179273	-82.379776
2	91	Abbotsford, WI Urban Cluster	C	5426584	13221	2.095	0.005	44.948612	-90.315875
3	118	Aberdeen, MS Urban Cluster	C	7416338	52820	2.863	0.020	33.824742	-88.554591
4	145	Aberdeen, SD Urban Cluster	C	33032902	120864	12.754	0.047	45.463186	-98.471033
...	...	...	...	...	...	...	...	...	...
3596	98101	Zapata--Medina, TX Urban Cluster	C	13451264	0	5.194	0.000	26.889081	-99.266192
3597	98182	Zephyrhills, FL Urbanized Area	U	112593840	1615599	43.473	0.624	28.285373	-82.198969
3598	98209	Zimmerman, MN Urban Cluster	C	24456008	2495147	9.443	0.963	45.455850	-93.606705
3599	98236	Zumbrota, MN Urban Cluster	C	4829469	0	1.865	0.000	44.292793	-92.670931
3600	98263	Zuni Pueblo, NM Urban Cluster	C	11876786	0	4.586	0.000	35.071066	-108.823725

3601 rows × 9 columns

Since we have the coordinates of each urban center in the INTPTLAT and INTPTLONG columns, we can convert this dataframe to a GeoDataFrame.

geometry = gpd.points_from_xy(df.INTPTLONG, df.INTPTLAT)
gdf = gpd.GeoDataFrame(df, crs='EPSG:4326', geometry=geometry)

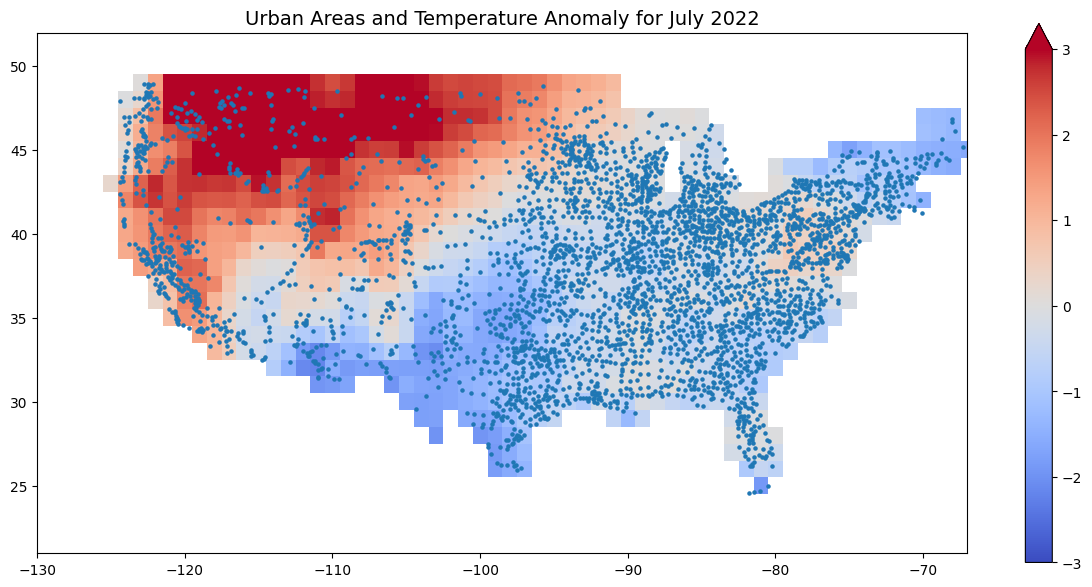

Let’s visualize the points along with the raster. As the GeoDataFrame contains points outside the continental US, we limit our plot to the bounds of the tanomaly layer.

fig, ax = plt.subplots(1, 1)
fig.set_size_inches(15, 7)

tanomaly.plot.imshow(ax=ax,
    vmin=-3, vmax=3, add_labels=False, cmap='coolwarm')
gdf.plot(ax=ax, markersize=5)
ax.set_xlim([tanomaly.x.min(), tanomaly.x.max()])
ax.set_ylim([tanomaly.y.min(), tanomaly.y.max()])
ax.set_title('Urban Areas and Temperature Anomaly for July 2022', fontsize = 14)

plt.show()

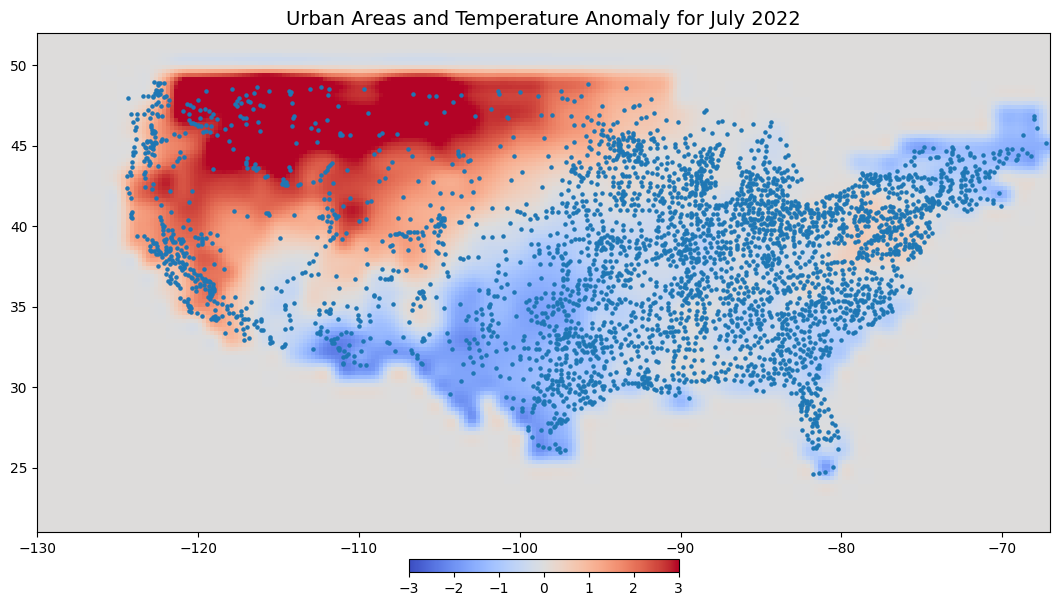

../_images/4b22dfc2bcdc0e8b45de637f3ffd4cd01eb8a41dfbf2d6b1f5c01258d21d7853.png

Sampling Raster Values#

Now we will extract the value of the raster pixels at each urban area point. Xarray’s sel() method allows you to specify coordinates at multiple dimentions to extract the array value.

We have our coordinates in a GeoDataFrame, we can use Panda’s to_xarray() method to convert the X and Y coordinates to a DataArray. When we use this to select the pixels from the raster array, the resulting DataArray being reindexed by the GeoDataFrame’s index.This will allow us to merge the results easily to the original GeoDataFrame.

x_coords = gdf.geometry.x.to_xarray()
y_coords = gdf.geometry.y.to_xarray()

Now we sample the values at these coordinates. Note that since the raster data pixels will not be indexed at the exact X and Y coordinates, we use method=nearest to pick the closest pixel.

sampled = tanomaly.sel(x=x_coords, y=y_coords, method='nearest')

To convert the resulting DataArray to Pandas, we use to_series() method.

gdf['tanomaly'] = sampled.to_series()
gdf.iloc[:, -5:]

	AWATER_SQMI	INTPTLAT	INTPTLONG	geometry	tanomaly
0	0.115	29.967156	-92.095966	POINT (-92.09597 29.96716)	-0.272462
1	0.008	34.179273	-82.379776	POINT (-82.37978 34.17927)	-0.704404
2	0.005	44.948612	-90.315875	POINT (-90.31588 44.94861)	0.130515
3	0.020	33.824742	-88.554591	POINT (-88.55459 33.82474)	0.018811
4	0.047	45.463186	-98.471033	POINT (-98.47103 45.46319)	1.311932
...	...	...	...	...	...
3596	0.000	26.889081	-99.266192	POINT (-99.26619 26.88908)	-1.866690
3597	0.624	28.285373	-82.198969	POINT (-82.19897 28.28537)	-0.064647
3598	0.963	45.455850	-93.606705	POINT (-93.6067 45.45585)	0.607703
3599	0.000	44.292793	-92.670931	POINT (-92.67093 44.29279)	0.007632
3600	0.000	35.071066	-108.823725	POINT (-108.82372 35.07107)	-0.732679

3601 rows × 5 columns

Now that we have the anomaly at each point location, let’s sort and find out the Top10 locations with highest anomaly.

sorted_gdf = gdf.sort_values(by=['tanomaly'], ascending=False)
top10 = sorted_gdf.iloc[:10].reset_index()
top10[['NAME', 'tanomaly']]

	NAME	tanomaly
0	Osburn, ID Urban Cluster	5.214408
1	Kellogg, ID Urban Cluster	4.543093
2	Libby, MT Urban Cluster	4.543093
3	Bonners Ferry, ID Urban Cluster	4.487802
4	Orofino, ID Urban Cluster	4.411723
5	Grangeville, ID Urban Cluster	4.411723
6	La Grande, OR Urban Cluster	4.300000
7	Baker City, OR Urban Cluster	4.300000
8	Rathdrum, ID Urban Cluster	4.138633
9	Deer Park, WA Urban Cluster	4.138633

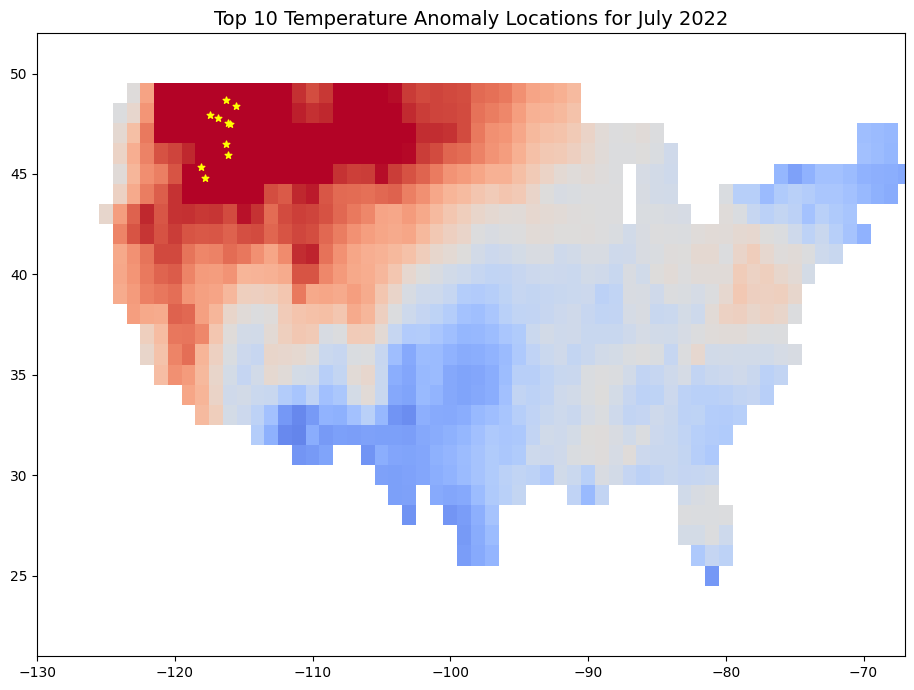

Let’s plot them on a map.

fig, ax = plt.subplots(1, 1)
fig.set_size_inches(15, 7)

tanomaly.plot.imshow(ax=ax,
    vmin=-3, vmax=3, add_labels=False, cmap='coolwarm', add_colorbar=False)
top10.plot(ax=ax, markersize=25, color='yellow', marker='*')
ax.set_xlim([tanomaly.x.min(), tanomaly.x.max()])
ax.set_ylim([tanomaly.y.min(), tanomaly.y.max()])
ax.set_title('Top 10 Temperature Anomaly Locations for July 2022', fontsize = 14)

plt.tight_layout()
plt.show()

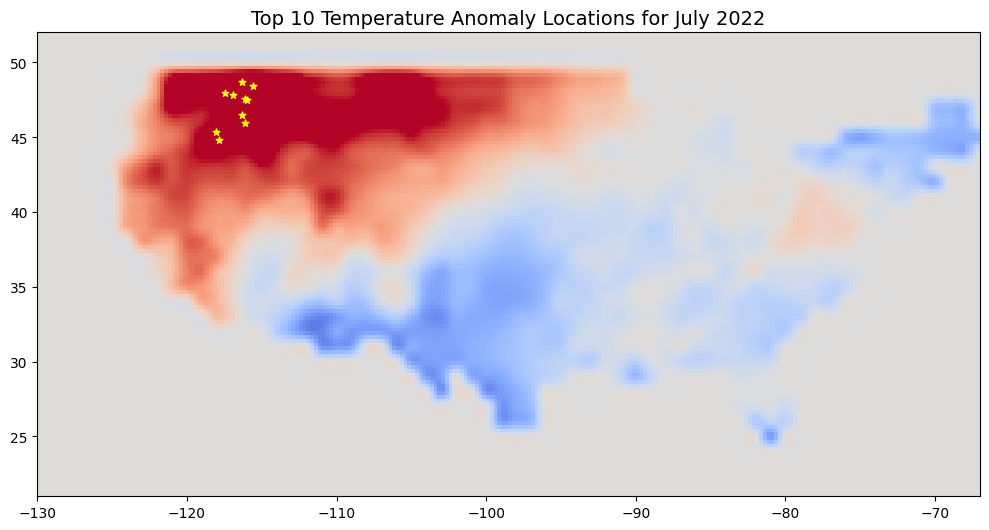

../_images/bbbe6298d47be4223ff6f95cc8f166d9bdbbb6b9a8bb740090c41b099fd96b73.png

Finally, we save the sampled result to disk as .gpkg.

output_filename = 'tanomaly.gpkg'
output_path = os.path.join(output_folder, output_filename)

gdf.to_file(driver='GPKG', filename=output_path)
